試用 Banana Pi M3 – Ubuntu minimal 16.04 上安裝 pppoe

參考網頁:
凍仁的筆記: Ubuntu 網路設定 – PPPoE (ADSL) 指令

1. 安裝 pppoeconf 套件
# apt-get install pppoeconf

2. 進行設定
# /usr/sbin/pppoeconf[@more@]3. 設定畫面
搜尋網路介面

常用選項設定

輸入使用者名稱

輸入密碼

使用 ISP 提供的 DNS 服務

限制 MSS 最大分段大小

開機時即進行連線

現在立即進行連線

設定完成

4. 查詢連線狀態
# ifconfig ppp0
ppp0      Link encap:Point-to-Point Protocol
          inet addr:36.230.2.191  P-t-P:168.95.98.254  Mask:255.255.255.255
          UP POINTOPOINT RUNNING NOARP MULTICAST  MTU:1492  Metric:1
          RX packets:1687 errors:0 dropped:0 overruns:0 frame:0
          TX packets:1570 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:3
          RX bytes:182742 (182.7 KB)  TX bytes:187860 (187.8 KB)

# ip addr show ppp0
5: ppp0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1492 qdisc pfifo_fast state UNKNOWN group default qlen 3
    link/ppp
    inet 36.230.2.191 peer 168.95.98.254/32 scope global ppp0

重新進行連線
# /usr/bin/pon dsl-provider
Plugin rp-pppoe.so loaded.

切斷連線
# /usr/bin/poff

試用 Banana Pi M3 – Ubuntu minimal 16.04 上安裝 no-ip2

為了管理方便,所以在家裡的 Banana Pi M3 上加裝 no-ip2
因為套件庫中沒有 noip 套件,所以要自行編譯安裝
參考網站:
How To Install No-ip2 On Ubuntu 12.04 LTS In Order To Host Servers On A Dynamic IP Address
How to Install the Linux Dynamic Update Client on Ubuntu

1. 安裝編譯相關套件
# apt-get install build-essential checkinstall[@more@]2. 下載 no-ip2 官網程式
# cd /usr/local/src/
# wget http://www.no-ip.com/client/linux/noip-duc-linux.tar.gz

3. 解壓縮
# tar xf noip-duc-linux.tar.gz

4. 切換目錄
# cd noip-2.1.9-1

5. 進行安裝
# make install
Please enter the login/email string for no-ip.com  abc@ilc.edu.tw
Please enter the password for user ‘abc@ilc.edu.tw’  ***********

Only one host [bplinux.sytes.net] is registered to this account.
It will be used.
Please enter an update interval:[30]
Do you wish to run something at successful update?[N] (y/N)  N

New configuration file ‘/tmp/no-ip2.conf’ created.

mv /tmp/no-ip2.conf /usr/local/etc/no-ip2.conf

設定檔位置:/usr/local/etc/no-ip2.conf

6. 建立開機啟動檔
# vim /etc/init.d/noip2
#! /bin/sh
### BEGIN INIT INFO
# Provides:          no-ip2
# Required-Start:    $local_fs $remote_fs $network $syslog $named
# Required-Stop:     $local_fs $remote_fs $network $syslog $named
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: Start/stop no-ip2
### END INIT INFO
case “$1” in
    start)
        echo “Starting no-ip2”
        /usr/local/bin/noip2
    ;;
    stop)
        echo -n “Shutting down no-ip2”
        for i in `noip2 -S 2>&1 | grep Process | awk ‘{print $2}’ | tr -d ‘,’`
        do
          noip2 -K $i
        done
    ;;
    *)
        echo “Usage: $0 {start|stop}”
        exit 1
esac
exit 0

7. 更改檔案執行權限
# chmod 755 /etc/init.d/noip2

8. 執行 no-ip2
# /etc/init.d/noip2 start
Starting no-ip2
# ps aux | grep noip2 | grep -v grep
nobody    1605  0.0  0.0   2036   628 ?        Ss   05:12   0:00 /usr/local/bin/noip2

9. 設定開機時執行
# sed -i ‘/export/ an#Starting no-ip2…n/etc/init.d/noip2 start’ /etc/rc.local

# update-rc.d noip2 defaults

10. 如果不需要編譯套件也可以移除
# apt-get remove –purge binutils build-essential checkinstall cpp cpp-5 dpkg-dev fakeroot file g++ g++-5 gcc gcc-5 libalgorithm-diff-perl libalgorithm-diff-xs-perl libalgorithm-merge-perl libasan2 libatomic1 libc-dev-bin libc6-dev libcc1-0 libdpkg-perl libfakeroot libfile-fcntllock-perl libgcc-5-dev libgomp1 libisl15 libmagic1 libmpc3 libstdc++-5-dev libubsan0 linux-libc-dev make manpages manpages-dev patch

試用 Banana Pi M3 – 擴展 /root 分割區

因為有的系統本身並沒有提供擴展 /root 分割區的的工具,所以改使用 GParted 來進行處理。

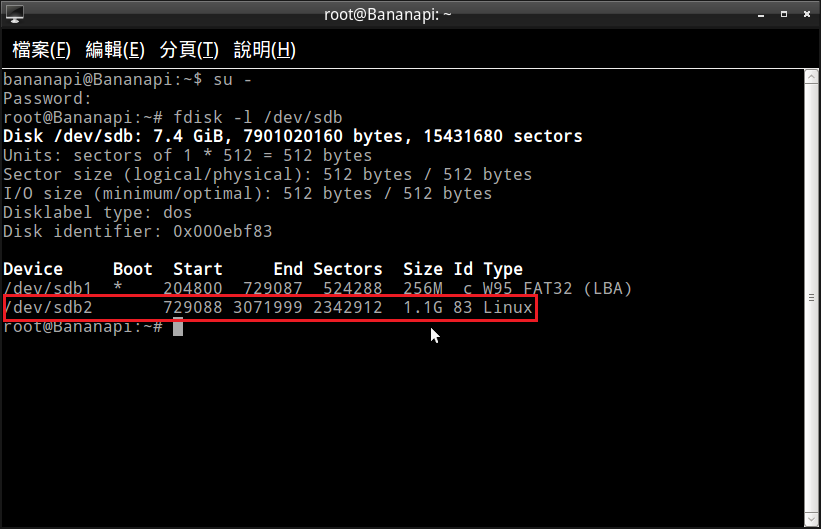

MicroSD 卡有 8G,但主要的 /root 分割區只用到 1.1G
# fdisk -l /dev/sdb

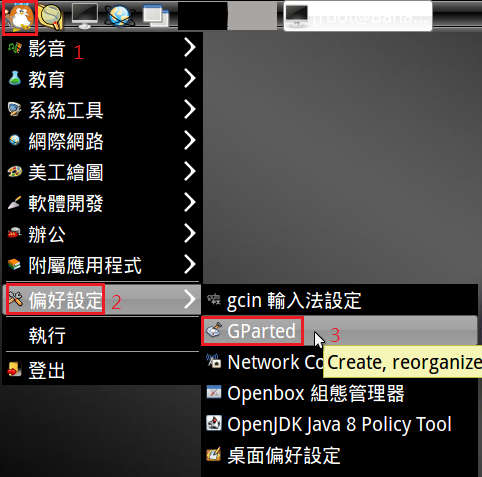

[@more@]執行 偏好設定 / GParted

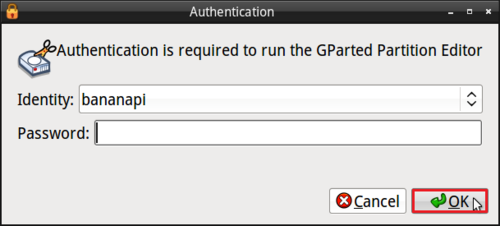

輸入 bananapi 使用者的密碼,並按 OK

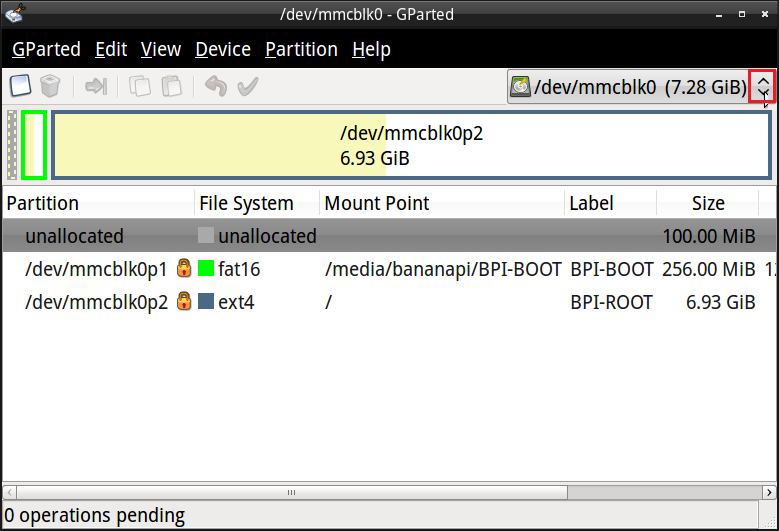

點選右上角來切換不同的磁碟機

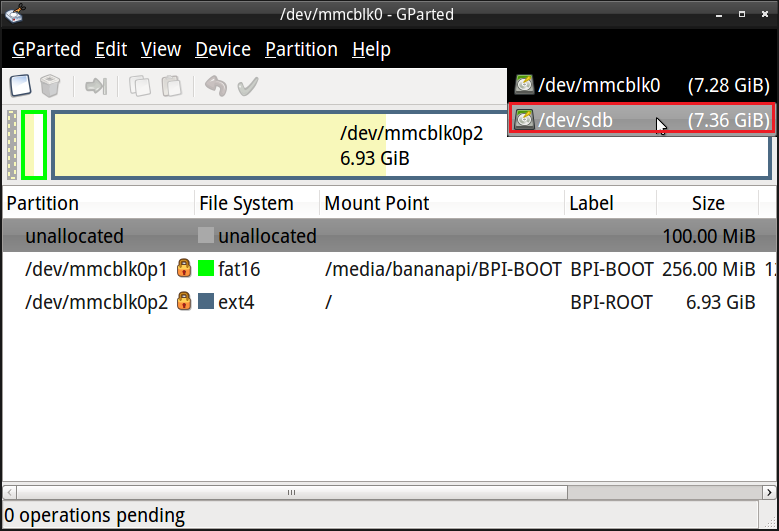

選擇要處理的磁碟機

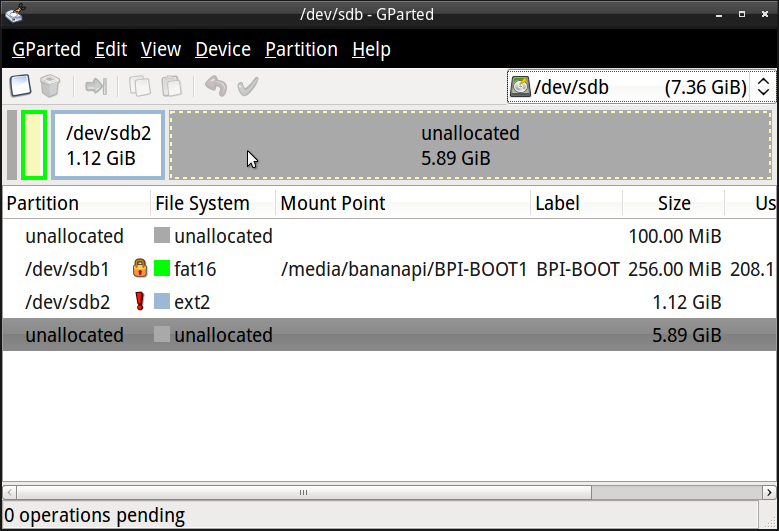

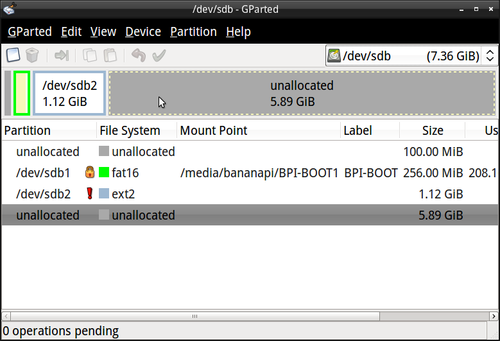

後面有 5.89G 仍未使用,有的系統可能要先 umount 原本的分割區才能 ReSize

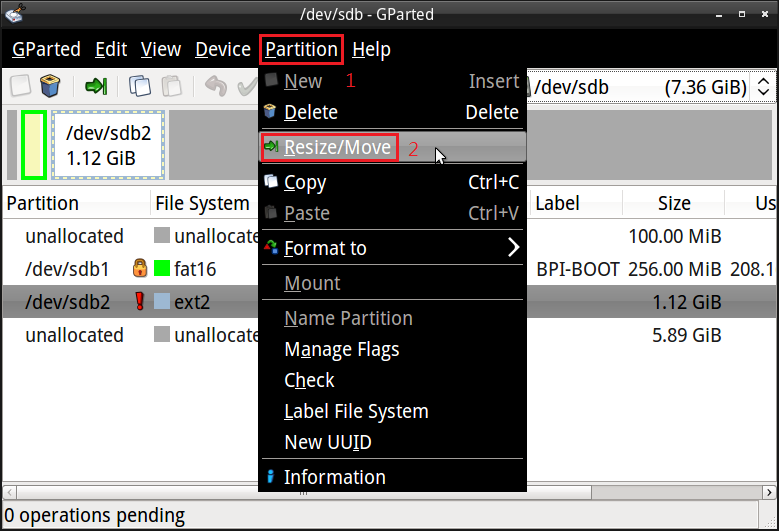

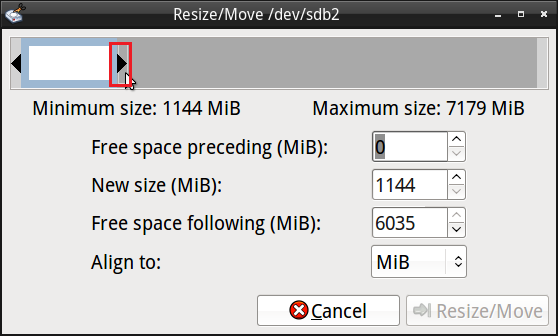

選擇 Partition / Resize/Move

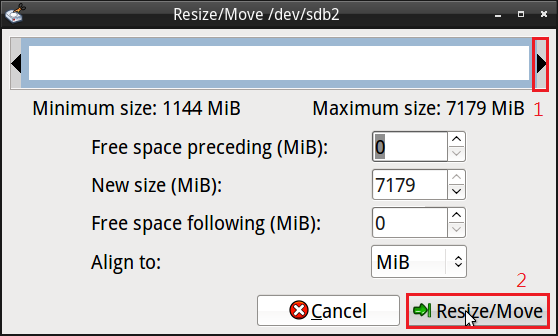

選擇分割區最後的黑色箭頭拉到最後面

選擇 Resize/Move

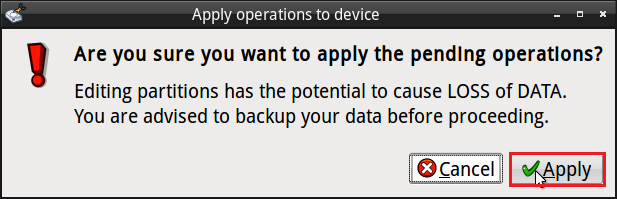

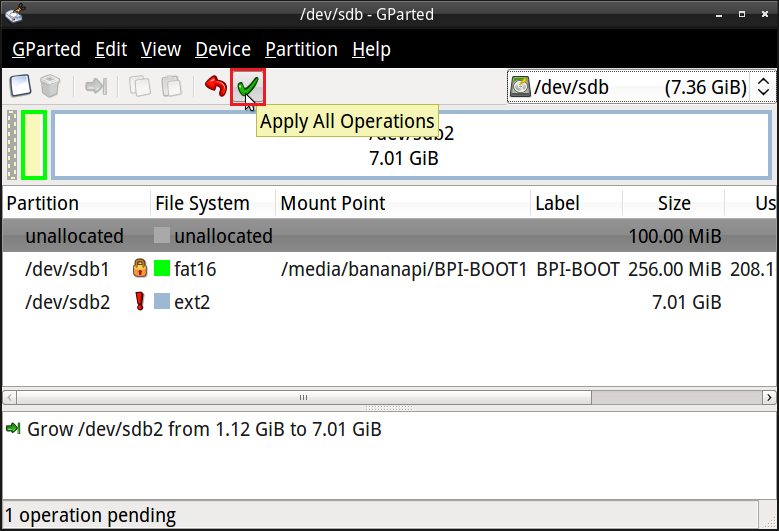

選擇 Apply 讓設定生效

選擇 Apply 讓設定生效

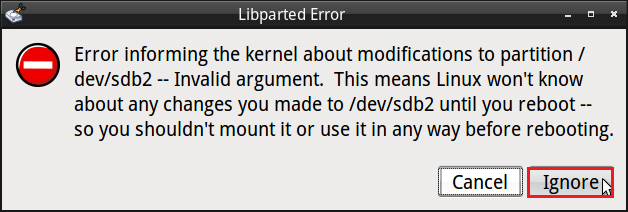

選擇  Ignore

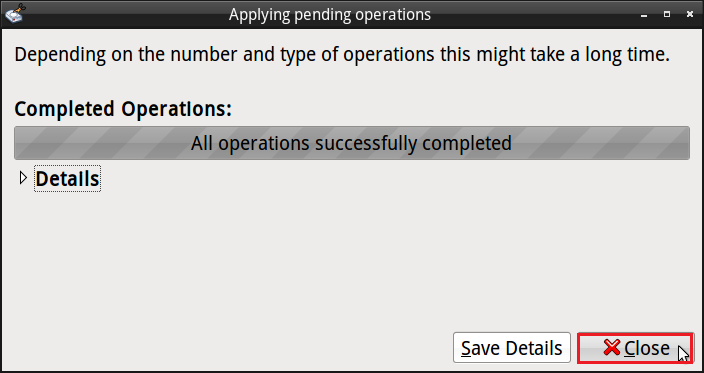

選擇  Close

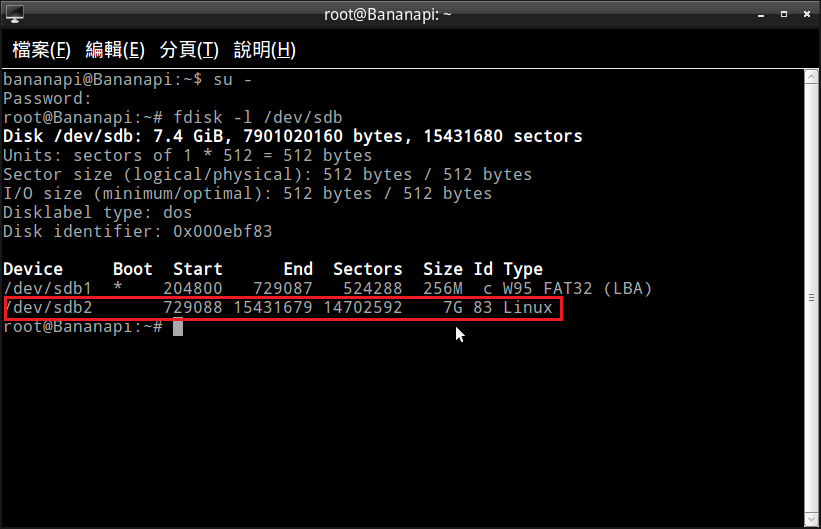

重新開機後,/root 分割區已經擴展到 7G
# fdisk -l /dev/sdb

原本的磁碟空間使用狀況
# df -h
Filesystem      Size  Used Avail Use% Mounted on
/dev/root       1.1G  997M   72M  94% /
devtmpfs        750M     0  750M   0% /dev
tmpfs          1006M     0 1006M   0% /dev/shm
tmpfs          1006M   18M  989M   2% /run
tmpfs           5.0M     0  5.0M   0% /run/lock
tmpfs          1006M     0 1006M   0% /sys/fs/cgroup
tmpfs          1006M  8.0K 1006M   1% /tmp

用製作好的 MicroSD 開機後 執行 resize2fs
# /sbin/resize2fs /dev/mmcblk0p2
resize2fs 1.42.13 (17-May-2015)
Filesystem at /dev/mmcblk0p2 is mounted on /; on-line resizing required
old_desc_blocks = 1, new_desc_blocks = 1
The filesystem on /dev/mmcblk0p2 is now 1814784 (4k) blocks long.

處理完後磁碟空間的使用狀況
# df -h
Filesystem      Size  Used Avail Use% Mounted on
/dev/root       6.9G  1.2G  5.5G  17% /
devtmpfs        750M     0  750M   0% /dev
tmpfs          1006M     0 1006M   0% /dev/shm
tmpfs          1006M   18M  989M   2% /run
tmpfs           5.0M     0  5.0M   0% /run/lock
tmpfs          1006M     0 1006M   0% /sys/fs/cgroup
tmpfs          1006M  8.0K 1006M   1% /tmp

Linux 下壓縮程式比較

原檔
$ ls -l UNUBeaconLogo128.png
-rw-r–r– 1 bananapi bananapi 25102 10月 12 17:16 UNUBeaconLogo128.png

使用 zip 格式
壓縮
# zip UNUBeaconLogo128.png.zip UNUBeaconLogo128.png
解壓縮
# unzip UNUBeaconLogo128.png.zip[@more@]

使用 7z 格式
壓縮
# 7z a
UNUBeaconLogo128.png.7z UNUBeaconLogo128.png
解壓縮
# 7z x UNUBeaconLogo128.png.7z

使用 gz 格式
壓縮(壓縮後原檔會不見)
# gzip
解壓縮(解壓縮後壓縮檔會不見)
# gzip -d UNUBeaconLogo128.png.gz
# gunzip UNUBeaconLogo128.png.gz

使用 xz 格式
壓縮(壓縮後原檔會不見)
# xz -z
解壓縮(解壓縮後壓縮檔會不見)
# xz -d UNUBeaconLogo128.png.xz
# unxz UNUBeaconLogo128.png.xz

綜合比較:在預設的情況下,不特別加上壓縮參數
$ ls -l UNUBeaconLogo128.png*
-rw-r–r– 1 bananapi bananapi 25102 10月 12 17:16 UNUBeaconLogo128.png
-rw-rw-r– 1 bananapi bananapi 11322 12月 24 13:54 UNUBeaconLogo128.png.7z
-rw-r–r– 1 bananapi bananapi 11378 10月 12 17:16 UNUBeaconLogo128.png.gz
-rw-r–r– 1 bananapi bananapi 11244 10月 12 17:16 UNUBeaconLogo128.png.xz
-rw-rw-r– 1 bananapi bananapi 11529 12月 24 13:54 UNUBeaconLogo128.png.zip

xz > 7z > gz > zip

gz / bz2 / xz 搭配 tar 使用
壓縮
# tar cjzf filename.tar.gz dirname
# tar cvjf filename.tar.bz2 dirname
# tar cvJf filename.tar.xz dirname

解壓縮
# tar xjzf filename.tar.gz
# tar xvjf filename.tar.bz2
# tar xvJf filename.tar.xz

Linux 下 7z 的使用方式

CentOS 7.x 安裝
# yum install epel-release
# yum update
# yum install p7zip

Arch Linux 安裝
# pacman -S p7zip

Ubuntu / Debian
# apt-get install p7zip-full

# apt-get install p7zip[@more@]CentOS 可用指令 7za
Arch Linux / Debian / Ubuntu 可用指令 7z / 7za

常用參數
壓縮
# 7z a 壓縮檔名.7z 要壓縮的檔案或目錄1 要壓縮的檔案或目錄2

解壓縮
# 7z x 壓縮檔名.7z

# 7z e 壓縮檔名.7z

xe 差別,如果建立壓縮檔時有包含目錄,則 x 會依照原本壓縮時的樣子來還原,e 會建立原來的空目錄名稱,並把檔案解開在目錄名稱的外面
原則上會建議使用 x

列出壓縮檔的內容
# 7z l 壓縮檔名.7z

解壓縮時指定目錄
# 7z x 壓縮檔名.7z -o目錄位置
# 7z x 123.7z -o/tmp

更多的參數
# 7z –help

<Commands>
  a : Add files to archive
  b : Benchmark
  d : Delete files from archive
  e : Extract files from archive (without using directory names)
  h : Calculate hash values for files
  i : Show information about supported formats
  l : List contents of archive
  rn : Rename files in archive
  t : Test integrity of archive
  u : Update files to archive
  x : eXtract files with full paths

試用 Banana Pi M3 – 利用網路來備份或還原 Image

因為 Banana Pi 的 USB 只有二個,通常一個用來接滑鼠,另一個用來接鍵盤,如果要備份時,就要另外用 SATA 排線接 SATA 的硬碟,或者直接改用無線的鍵鼠組,就可以多一個 USB 來外接備份的設備(USB 隨身碟或硬碟),有些不太方便,所以直接透過區域網路上的其他 Sever,會方便許多。

一、.使用 Samba
1. 安裝 cifs-utils 套件
# apt-get install cifs-utils
2. 建立掛載目錄
# mkdir /mnt/bpi-samba
3. 進行掛載(使用者 abc,密碼 123456,Samba Server 192.168.1.13)
# mount.cifs -o username=”abc”,password=”123456″ //192.168.1.13/abc /mnt/bpi-samba[@more@]二、使用 SSH
1. 安裝 sshfs 套件
# apt-get install sshfs
2. 建立掛載目錄
# mkdir /mnt/bpi-sshfs
3. 進行掛載(使用者 abc,SSH Server 192.168.1.13)
# sshfs abc@192.168.1.13:/home/abc /mnt/bpi-sshfs
abc@192.168.1.13’s password:

如果要不用輸入密碼,可以參考:
[超易] 兩行指令搞定 Linux SSH登入免密碼 – LinXblog

三、使用 FTP
1. 安裝 curlftpfs
# apt-get install curlftpfs
2. 建立掛載目錄
# mkdir /mnt/bpi-ftp
3. 進行掛載(使用者 abc,密碼 123456,FTP Server 192.168.1.13)
# curlftpfs ftp://abc:123456@192.168.1.13 /mnt/bpi-ftp

卸載目錄
# umount /mnt/bpi-ftp

試用 Banana Pi M3 – 關於 Image

參考網站:
夢幻天地blog: zip dd做映像檔pv秀進度

這是二個從官方下載下來的 Image

1

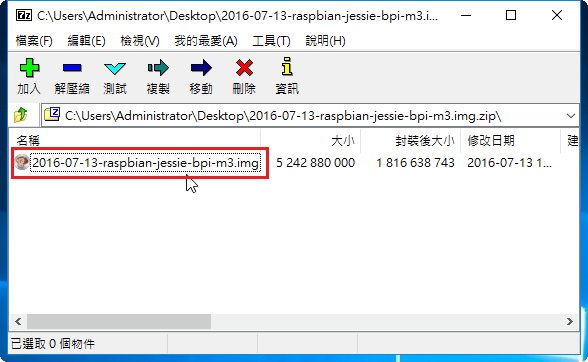

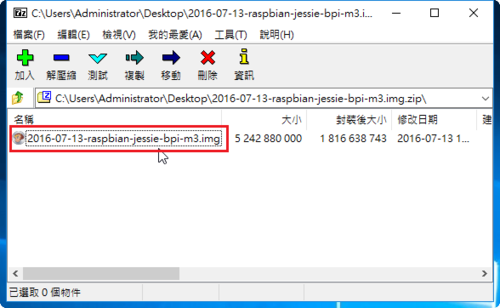

使用 7-Zip 開啟後

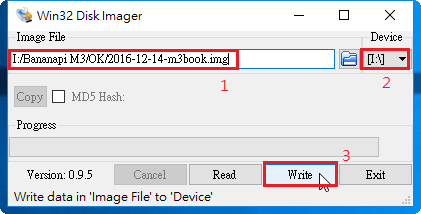

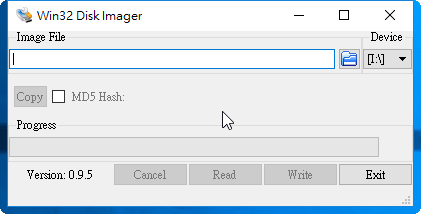

[@more@]img 檔的部份 解開後可以在 Windows 系統中使用 Win32 Disk Imager 來進行燒錄

至於 CentOS Lite 可能要到 Linux 中來進行燒錄 of= 後面接的是要燒錄的 MicroSD 卡的設備名稱
# unzip -p 2016-05-12-centos-lite-preview-bpi-m3.img.zip | pv | dd of=/dev/sdb bs=10M status=noxfer

或是直接使用 Banana Pi 中的 bpi-copy 指令來進行燒錄
# bpi-copy 2016-05-12-centos-lite-preview-bpi-m3.img.zip /dev/sdb

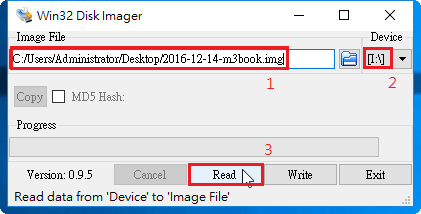

備份的方式,在 Windows 系統上也是使用 Win32 Disk Imager 來進行備份

在 Linux 或 Banana Pi 下
# dd if=/dev/sdb of=/mnt/bpi/2016-12-12-centos-lite-preview-bpi-m3.img bs=1M

不過使用 Win32 Disk Imager 及  dd 製作出來的 Image 都會有些大,因為它的大小就是使用的 MicroSD 卡的大小,比如用 16G 的 MicroSD 卡,製作出來的 Image 就會是 16G,哪怕系統只用到 2G,所以要進行 Image 的壓縮。

壓縮 Image
# dd if=/dev/sdb bs=1M | pv | zip 2016-12-12-centos-lite-preview-bpi-m3.img.zip –

壓縮前

壓縮後

不過使用這種方式來壓縮,就會無法使用 Windows 系統中的 Win32 Disk Imager 來進行還原燒錄,對於剛使用 Banana Pi 的使用者會有些困擾!

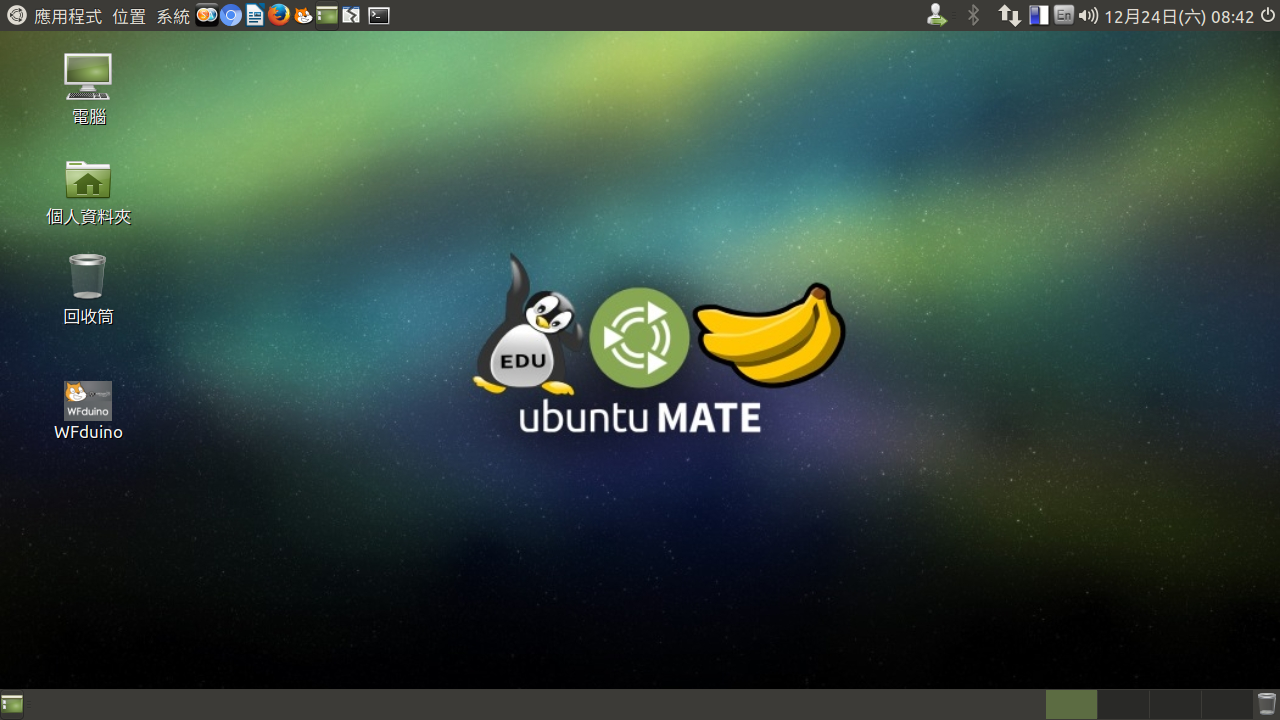

試用 Banana Pi M3 – 試用新北市 bpi-m3-mate1604-0709

下載網站:ftp://163.20.108.15/ftp/bpim3/bpi-m3-mate1604-0709.zip


感謝新北團隊的製作,這一個版本是我使用過 Ubuntu Mate 最沒有問題的版本,官網上下載下來的版本,最後在做 apt-get upgrade 通通都陣亡了![@more@]

順手修改了一下,移除一些自己不用的軟體
# apt-get update

移除 fcitx
# apt-get remove –purge fcitx

移除 cheese 攝影機及 brasero 燒錄程式
# apt-get remove –purge cheese brasero

移除 hexchat 網路清談、pidgin 聊天、thunderbird 信件軟體
# apt-get remove –purge hexchat pidgin thunderbird

移除 Apache、PHP、MySQL
# apt-get remove –purge apache2 php mysql

移除多餘語言套件
apt-get remove –purge $(dpkg -l | grep language | awk ‘{print $2}’ | grep ^language | egrep -v ‘zh-hant|en|selector’)

改用 gcin
# apt-get install gcin

更新到最新版本
# apt-get upgrade

不過不知道為什麼,這一個版本好像有點大,我試過用三片的 16G  MicroSD(ADATA/TOSHIBA/Transcend),都一直無法燒錄 Image 成功,後來直接改用 32G 的才沒有問題。
