PXE Server 的功能表

如果沒有特別做設定,PXE Server 的功能表就是這樣醜醜的

但也可以加上背景圖,以 DRBL PXE 為例
[@more@]DRBL PXE 功能表設定
default vesamenu.c32
# 倒數計時時間(7sec)
timeout 70
prompt 0
noescape 1
MENU MARGIN 5
# 背景圖
MENU BACKGROUND drblwp.png
# Set the color for unselected menu item and timout message
MENU COLOR UNSEL 7;32;41 #c0000090 #00000000
MENU COLOR TIMEOUT_MSG 7;32;41 #c0000090 #00000000
MENU COLOR TIMEOUT 7;32;41 #c0000090 #00000000
MENU COLOR HELP 7;32;41 #c0000090 #00000000

# MENU MASTER PASSWD

say **********************************************
say Welcome to DRBL.
say NCHC Free Software Labs, Taiwan.
say http://drbl.org; http://drbl.nchc.org.tw
say **********************************************

# Allow client to edit boot parameters
ALLOWOPTIONS 1

# simple menu title
MENU TITLE DRBL (http://drbl.org)

label drbl
# 預設選項
  MENU DEFAULT
  # MENU HIDE
  MENU LABEL Ubuntu 14.04 Linux (DRBL mode, mostly local resources)
  # MENU PASSWD
  kernel vmlinuz-pxe
  append initrd=initrd-pxe.img devfs=nomount drblthincli=off selinux=0 quiet edd=on
# 下方的說明
  TEXT HELP
  * DRBL version: 2.6.15-1. (C) 2003-2014, NCHC, Taiwan
  * Disclaimer: DRBL comes with ABSOLUTELY NO WARRANTY
  ENDTEXT

label clonezilla
  # MENU DEFAULT
# 功能表隱藏
  MENU HIDE
  MENU LABEL Clonezilla
  # MENU PASSWD
  kernel vmlinuz-pxe
  append initrd=initrd-pxe.img devfs=nomount drblthincli=off selinux=0 quiet text 1 edd=on
  TEXT HELP
  * Clonezilla version: 3.5.2-2. (C) 2003-2014, NCHC, Taiwan
  * Disclaimer: Clonezilla comes with ABSOLUTELY NO WARRANTY
  ENDTEXT

label local
  # MENU DEFAULT
  # MENU HIDE
  MENU LABEL Local operating system (if available)
  # MENU PASSWD
  # 2 method to boot local device:
  # (1) For localboot 0, it is decided by boot order in BIOS, so uncomment the follow 1 line if you want this method:
  # localboot 0

  # (2) For chain.c32, you can assign the boot device.
  # Ref: extlinux.doc from syslinux
  # Syntax: APPEND [hd|fd]<number> [<partition>]
  # [<partition>] is optional.
  # Ex:
  # Second partition (2) on the first hard disk (hd0);
  # Linux would *typically* call this /dev/hda2 or /dev/sda2, then it’s “APPEND hd0 2”
  #
  kernel chain.c32
  append hd0
  TEXT HELP
  Boot local OS from first hard disk if it’s available
  ENDTEXT

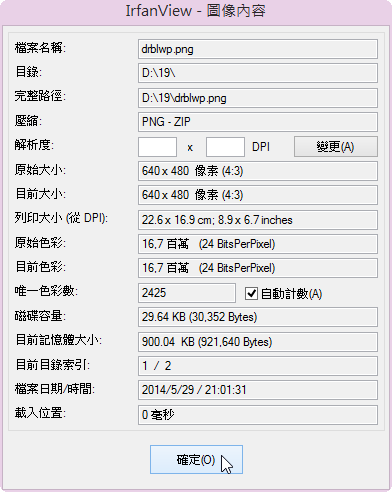

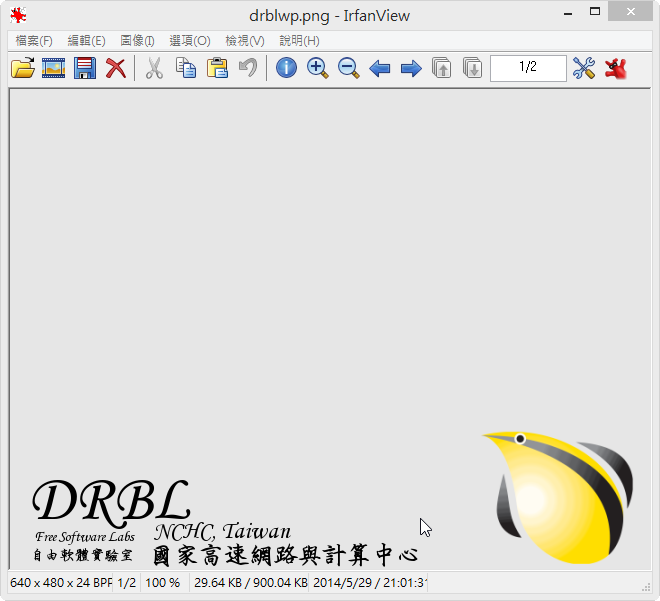

背景圖資訊
